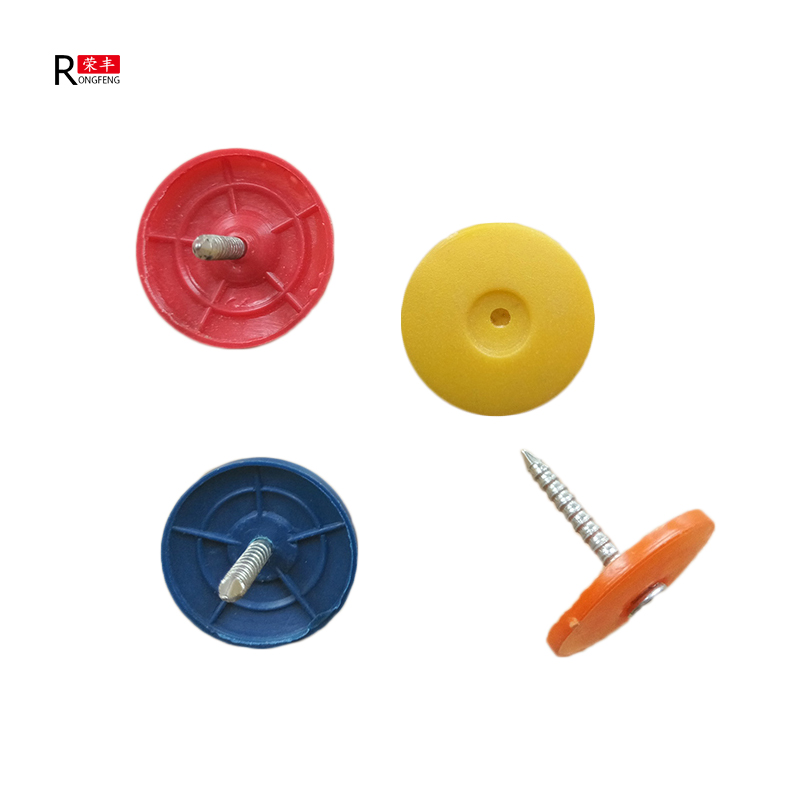

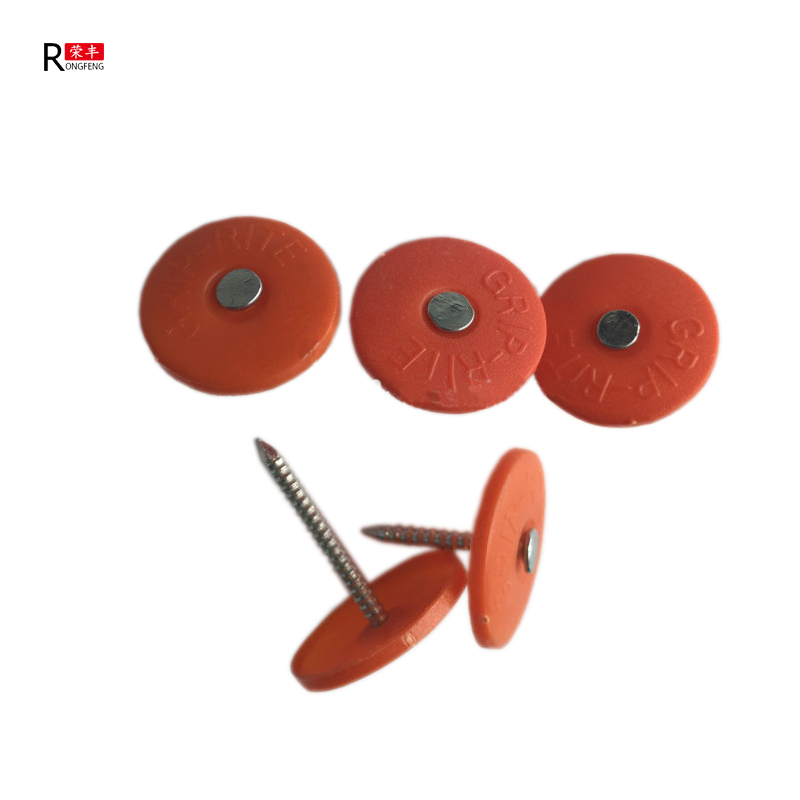

Colorful Cap Nails/Plastic Cap Nails Factory

Colorful Cap Nails/Plastic Cap Nails Factory



1.plastic cap nail material: High carbon steel



2. plastic cap nail feature:

• Strong outer rim for increased rupture values

• Minimizes the heat sinking effect of metal to the building materials

• Ring shanks for additional pull out resistance

• Installed with hand or pole hammer

• Round head will not puncture roof membrane

• Fast, Affordable, and Strong

3.plastic cap nail use:

• Roofing felt fastener

• Base sheet fastener

• Board insulation fastener

• Structural sheathing fastener

• Insulative sheathing fastener

• Radiant barrier fastener

• House wrap fastener

• Vapor barrier fastener



4. plastic cap nail specification:

Specification	Shank Length	Shank Gage	Head diameter
12G*3/4''	3/4''	12G	1''
12G*7/8''	7/8''	12G	1''
12G*1''	1''	12G	1''
12G*1-1/4''	1-1/4''	12G	1''
11G*1-1/2''	1-1/2''	11G	1''
11G*1-3/4''	1-3/4''	11G	1''
11G*2''	2''	11G	1''
11G*2-1/2''	2-1/2''	11G	1''
11G*3''	3''	11G	1''







5. plastic cap nail design option:



Shank types	Coating types	Container	Cap	Nail material
Annular  Grooved	Bright	2,500CT.	1''	High     carbon steel
	Yellow dichromate electro  galvanized	Retail              boxes
		Pails

6. plastic cap nail pullout result:



Average pullout resistance (lbs.)	Smooth	Annular grooved
1/2'' plywood	81	155
3/4'' plywood	99	224
2'' pine plank	67	190
