Red cap nail anchor for Insulation board /insulation anchor

  • RF


 Red Cap Nail Anchor for supporting wall external thermal insulation


1.Introduction & details


l   Material: original PE. plastic outside,steel nails inside

l   Length: 95,105,122,142mm or customized

l   Diameter: 3.7mm

l  Thermal conductivity:0.03


l   Nail length: 42, 47, 52mm etc

l   The nails of diameter: 3.6mm or 3.3~3.6mm

l   operation temperature: 200

l   breaking elongation: 90

l   Color: white and grey or as client’s design

l   Diameter of table:5.0or 6.0cm

l   Wall thickness:1.3mm

l   Thermal conductivity:0.03

l   Disc: 55mm or 60mm







We use the best HDPE to ensure the purity of the insulation nails, the production is pure and strong. and let me via a photo show you clearly!

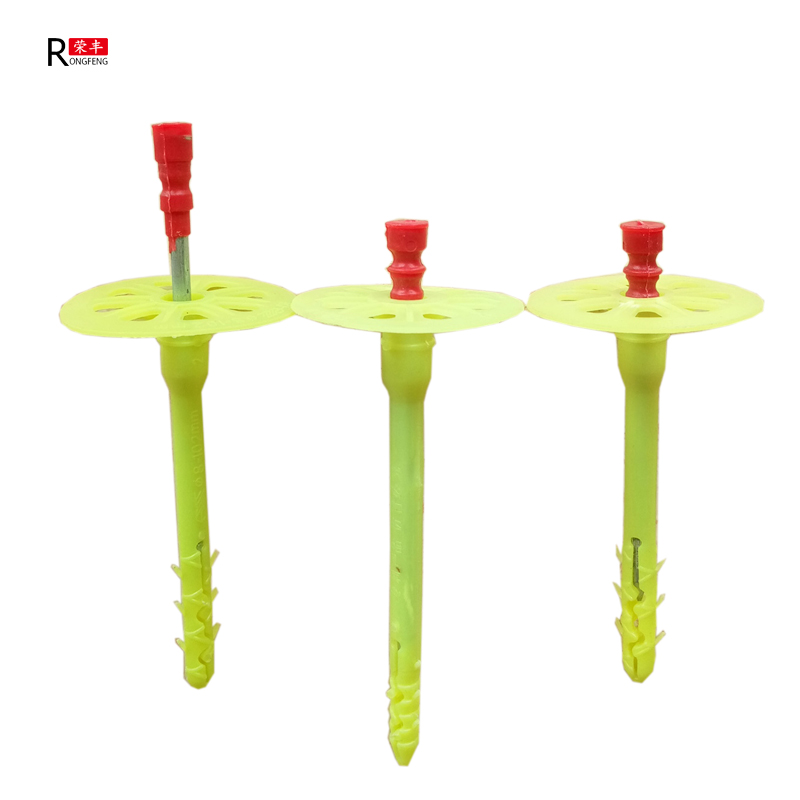

3.Sample of red cap insulation anchor


red cap insulation anchor Uses: Widely used in floor heating industry, power plants, petrochemical external wall insulation engineering, architectural wall reinforcement, and the construction industry.




4.Products feature


1. Breakthrough traditional of insulation shooting nails limited, Provides newsolution programme for insulation system of construction;

2. Tight speed 10 times above than traditional drilling and ancher way,construction speed 6-8grain per minute;

3. Avoid complex steps of drilling, tight directly. And no dust of drilling producing;

4. Without power supply,conveinent and practical;

5. Suit for sand-lime bricks,concrete and steel substrates;

6. Applicable to all kinds of insulation materials, such as glass wool, rock wool and so on;

7. The low heat conductivity doesnot sffect the insulation effection;

8. No presure for insulation board;

9. Application of insulation thickness 30-20mm.


5.Packing & advantage


high quality low price red cap insulation anchor packing: a.  Plastic films + carton+ pallet .(500/1000pieces per carton)

                                                        b.  As the client's design .

Packing step: 1. We pack it in the  polythelene bag first to protact them from damp.

                            2Put the  polythelene bag into the carton.

                           3. Packing

                            4. Pack it on the tray and pack the pallet.

                            5. Cover the pallet with preservative film to  prevent moisture.



6.Delivery & Payment & Shipping


red cap insulation anchor delivery time : within 7 days after received your payment.


red cap insulation anchor payment terms : 100%T/T or 30% T/T before production, 70% before shipping.


shipping of red cap insulation anchor


7.Our other products

 If you are interested in thermal insulation nails, etc, you can click the picture to view more or contact me directly. Welcome inquiry!
